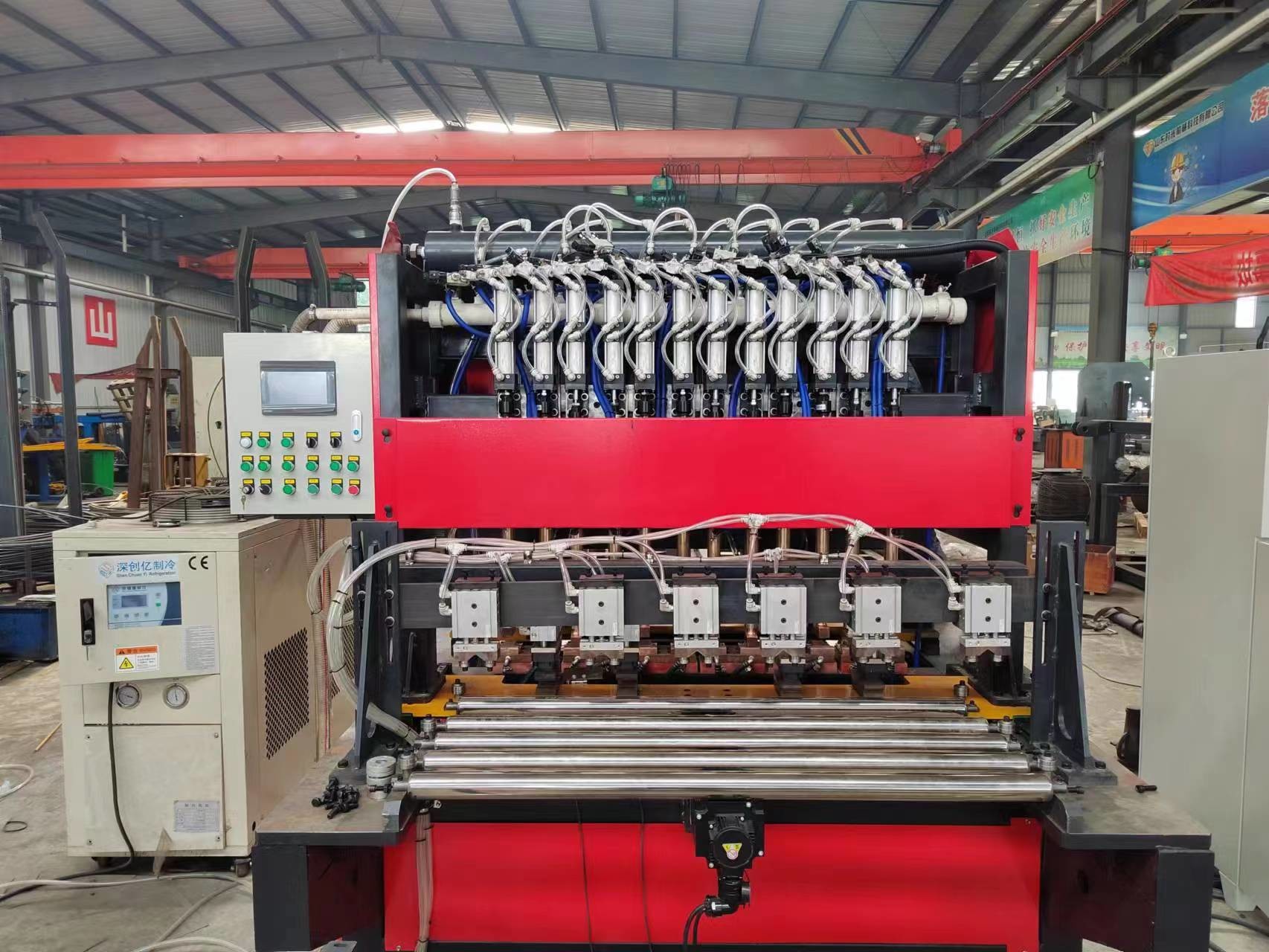

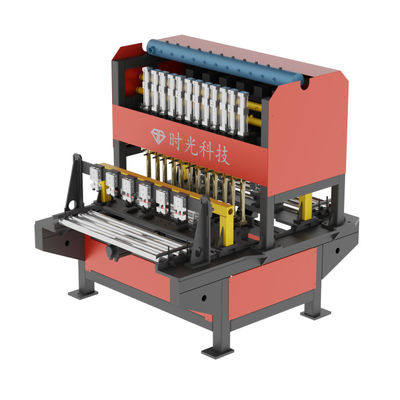

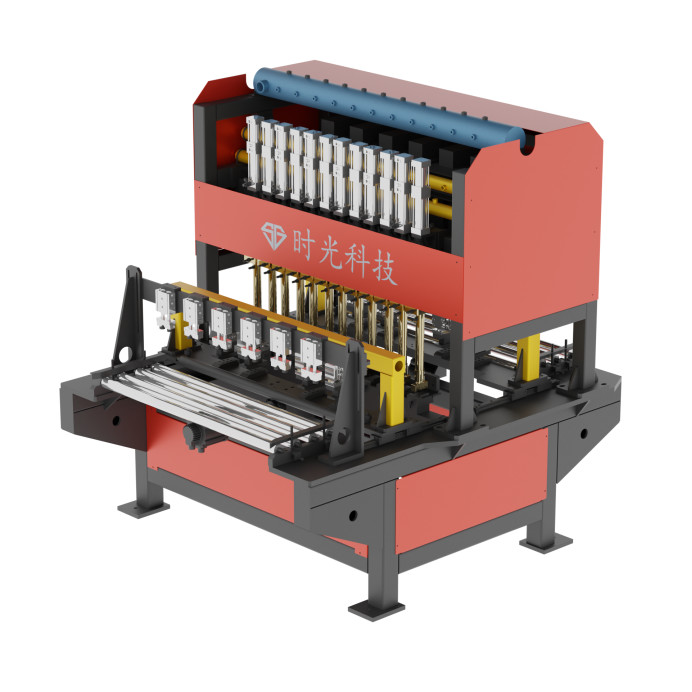

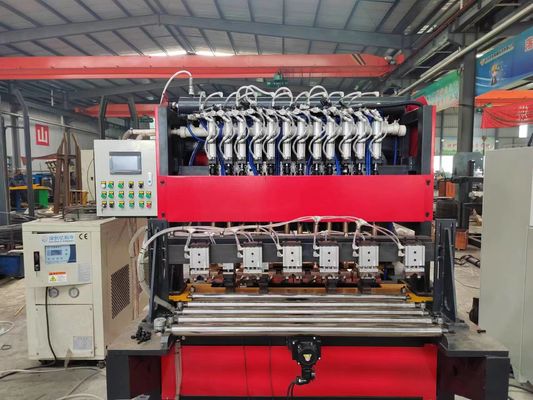

SGMB-1200 intelligent steel bar truss mesh assembly welding machine
1 Equipment overview
Steel bar truss formwork welding production line is composed of conveying roller path, automatic alignment, automatic guidance, automatic welding, control system, etc., which is mainly used in the welding of steel bar truss and mesh, galvanized plate, steel plate and other steel formwork in the construction industry.
Electric type intelligent CNC template welding machine parameter table
| Rated voltage: 380v / 50 hz | Power demand: 200 kv A |
| Welding power: 6 * 100 kv A | Other power: 3KW |
| Table height: 800mm | Step forward: 190-210 (adjustable) |
| Final product width: 1,200 mm | Weldable plate thickness: (0.4-1.0) mm |
| Number of welded electrodes: 12 | Overall weight: 3T |
| Equipment size: 2,000 X1900X2100 | Weld mesh width: 600,1200 |
