Cooling-water machine
The technical specification parameters of air-cooled box-type water cooling units are listed in the table below:

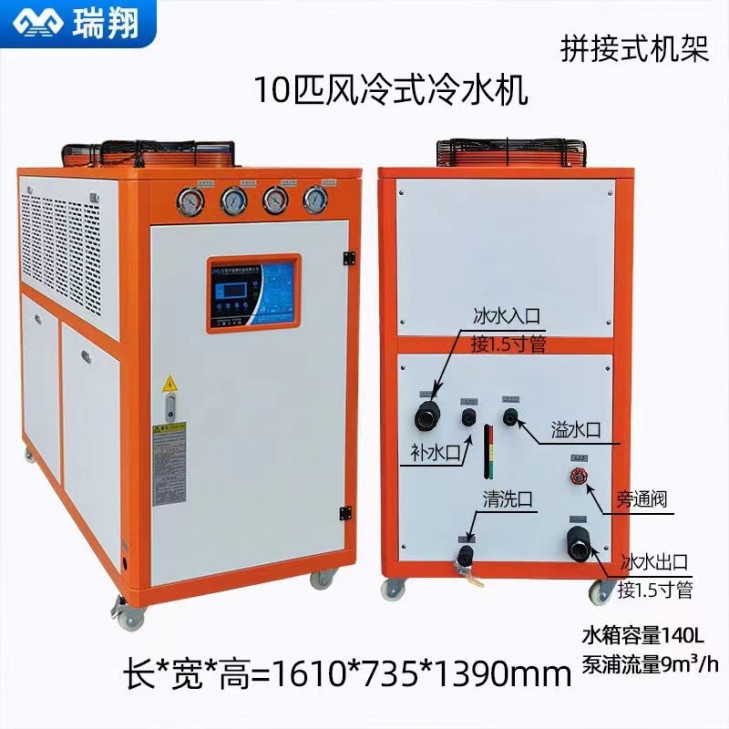

Bypass Valve
Connect to 1.5 inch pipe
Tank capacity 140L
Pump flow 9m³/h
|
Item
|
Air-cooled series products | |
| RX-10 | ||
| Power supply | 10P-50Hz-380V | |
| Cooling water flow m3/h | 6.0 | |
| Total power consumption kW | 10.5 | |
|
Cooling Capacity
|
kW | 36 |
| kCal/hr | 30960 | |
| Type | Totally enclosed scroll type | |
| Starting method | Direct start | |
| Condensing unit | Type | High-efficiency purple copper jacketed aluminum foil finned + low noise fan |
| Cooling air volume m3/h | 12000 | |
| Number of units | 1 | |
| Coolant | Type | R22 |
| Built-in water pump kW | 1.5 | |
|
Evaporator
|
Number of units | High-efficiency water tank coil type |
| Type | 1 | |
| Pipe Diameter | DN40 | |
| Safety protection devices | High and low voltage protection, anti-icing protection (double), safety valve, overload protection, under-phase, reverse phase, under-voltage, over-voltage, water flow protection, etc. | |
| Safety protection device | Length | 1610 |
| Width | 735 | |
| Height | 1390 | |
| Overall Dimension | kg | 326 |
