Air compressor

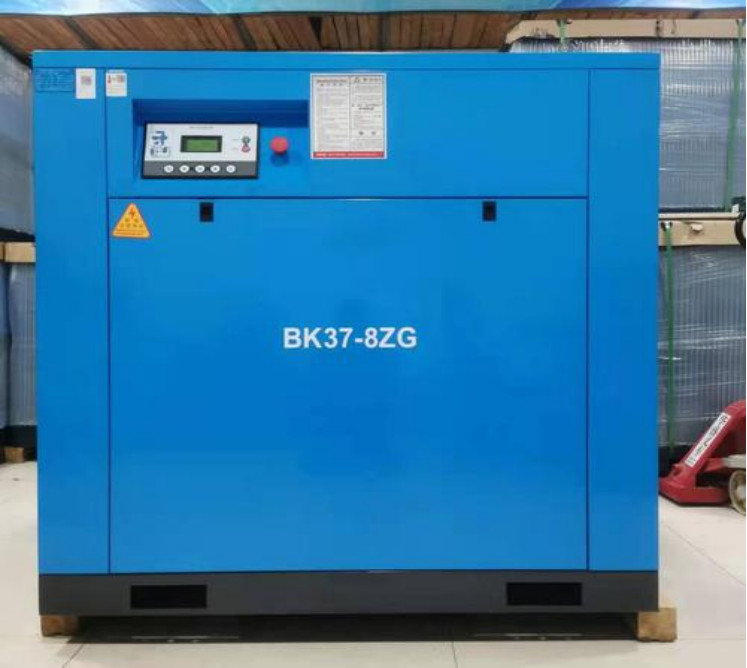

KAIZEN BK Series 37kW Screw Compressor Supporting Parameters
BK series new screw compressor humanized human-machine interface display and control system.
Simple and convenient operation
The operating status can be seen at a glance. The operation status can be seen at a glance.
BK Series Screw Compressor Can work for you 24 hours unattended.
. Maintenance or overhaul prompted in Chinese when abnormalities occur .
. With spare output interface, it can realize chain control and remote diagnosis control of multiple units.
BK Series New Screw Compressor with Built-in Oil Separation System
. Adoption of built-in oil separation design ensures oil-air separation effect and reduces oil consumption, and the product quality is fully guaranteed from the very beginning of design.
BK series new type screw air compressor high efficiency air inlet control valve.
ON/OFF control mode
Anti-oil spray design with check valve
BK series screw compressors have a new generation of low-consumption, high-efficiency motors.
High starting torque
Insulation class F, protection class IP54
SKF bearings, low noise, long service life
. With refueling device, can be refueled without stopping the machine.
| Discharge pressure Mpa |
0.8 |
| Discharge volume m³/min | 5.5 |
| Motor power kW | 37 |
| Exhaust interface | G11/2 |
| Noise db(A) | 67 |
| Weight KG | 730 |
| Overall dimension mm | 1240*1030*1435 |
