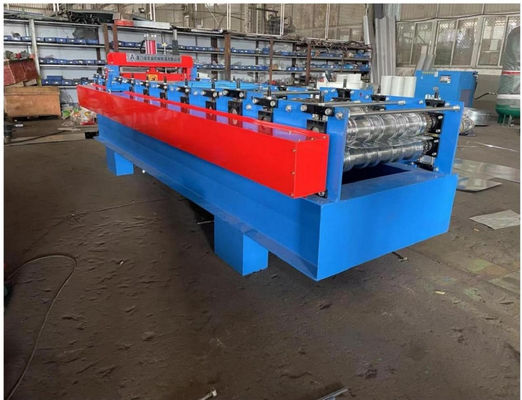

Plate press,
Process flow: Unwinding → Guided feeding → Roll formation → Cutting off in forming → Roll forming → Finished products outlet
| Main motor power | 4kW( Rotating Cycloid Reduction Motor) |
| PLC and frequency converter | Delta (PLC microcomputer control system: automatically control the number and length of boards) |
| Touch screen | WEINVIEW.CO.,LTD (Taiwan) |
| Hydraulic molding shear mechanism | Cut-off in molding |
| Feed width | 625/600 |
| Suitable for pressing plate | 0.4—0.7mm ( Galvanized steel plate with yield strength ≤ G300) |
| Forming speed | 10—15m/min |
| Number of forming passes | 12 |
| Overall weight | Approx. 3.5T |
| Unloading rack | 1 unit |
